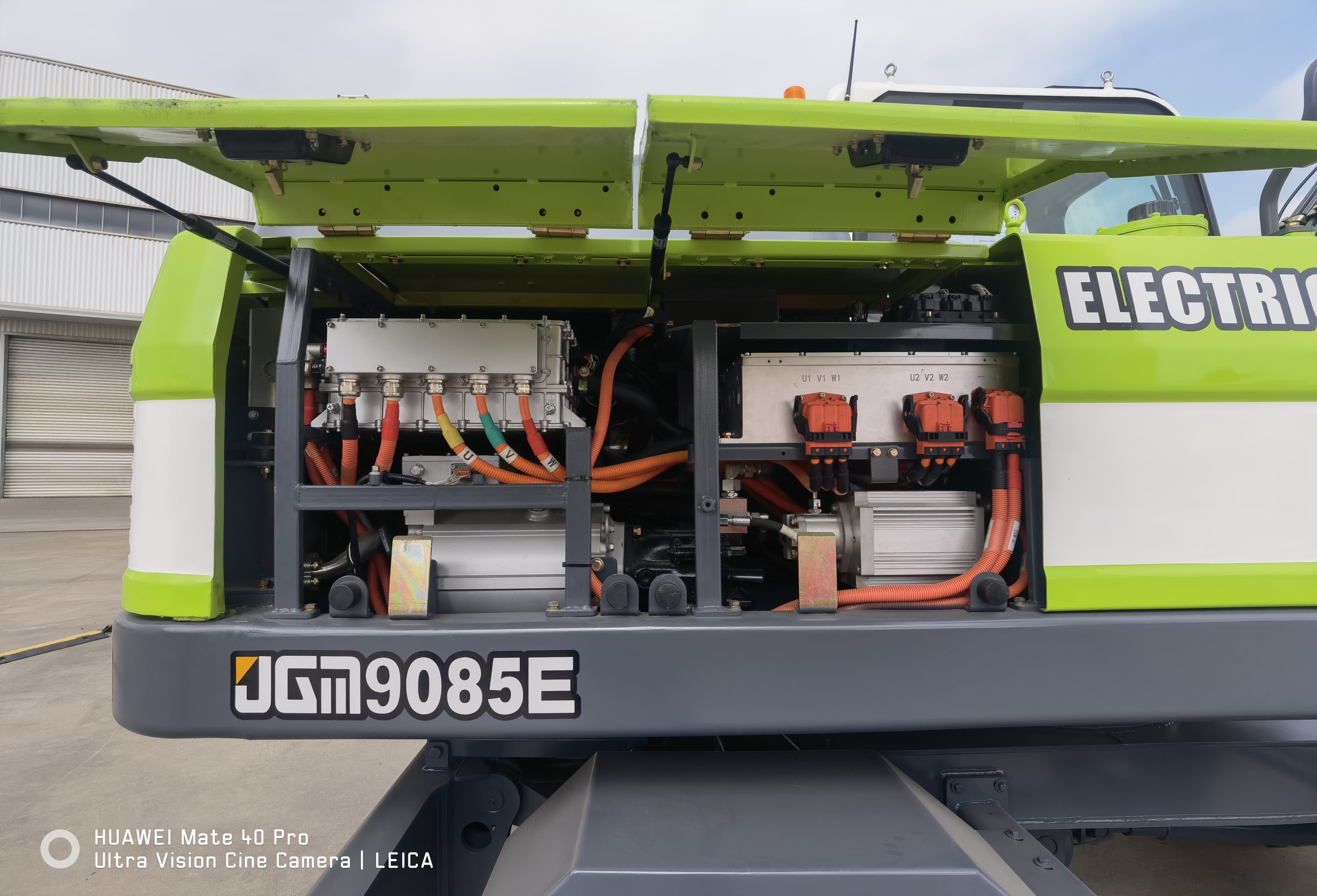

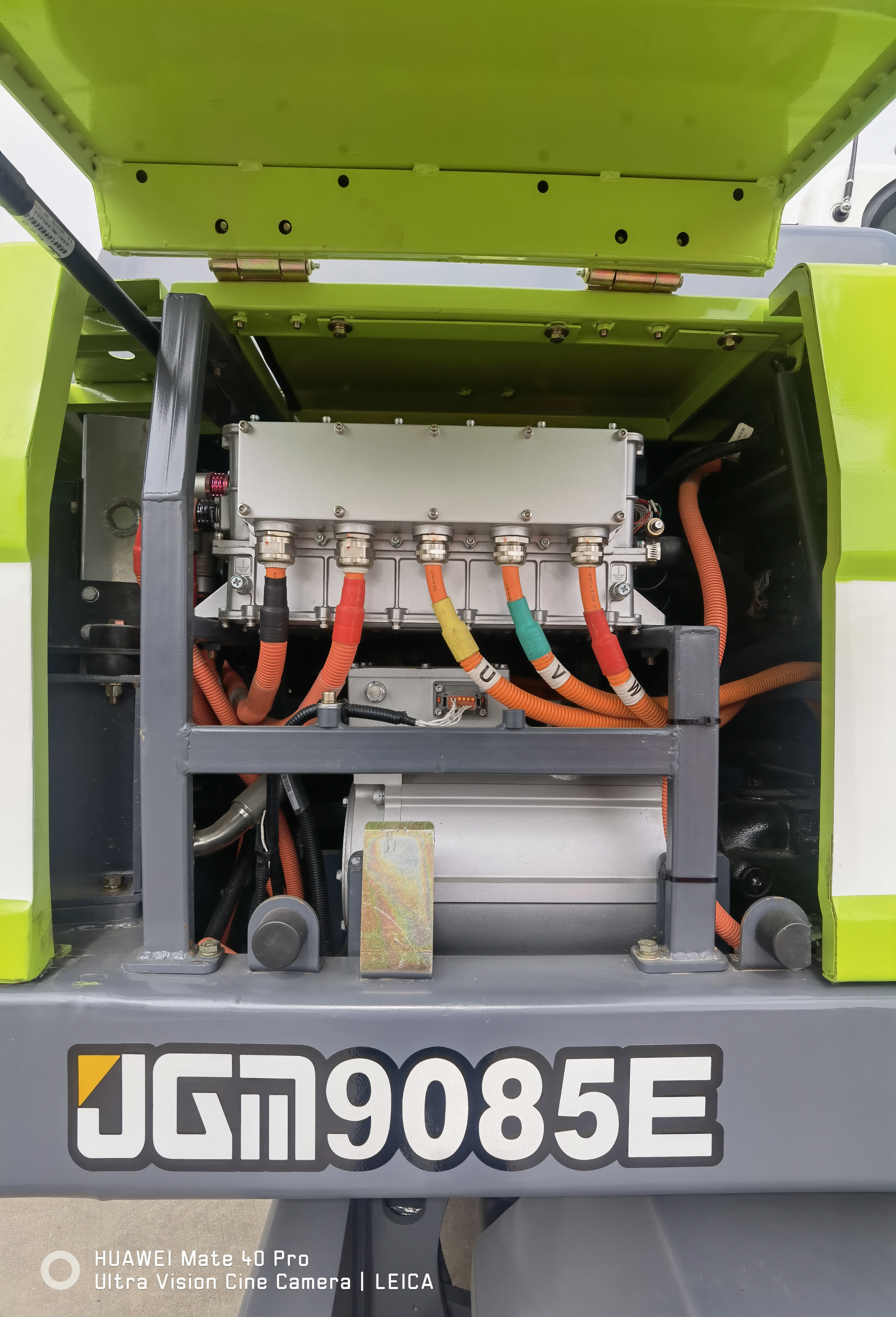

CRRC Permanent magnet synchronous motor，High torque, high power Low noise, small vibration, Quick start, more comfortable Waterproof and dustproof, Insulation maintenance. The whole machine adopts dual-motor system drive scheme, The oil pump motor and the walking motor can be separated to achieve independent control, which is more powerful and energy-saving.
Customized service support: Bucket size, tire type, control system, and other configurations can be customized according to user operating scenarios (such as mining, ports, agriculture), while providing a 2-year/5000 hour warranty and on-site maintenance service to reduce user concerns.
Environmental emission standards: The engine meets the National IV/Euro V emission standards and is equipped with a particulate filter (DPF) and selective catalytic reduction system (SCR), reducing exhaust pollutant emissions by 60% and meeting environmental policy requirements.
Specifications:
1. Super Continuous Working Time
International first-class quality lithium iron phosphate battery, high energy density, high charge and discharge efficiency; Energy recovery system, longer battery life and more energy efficient; Continuous Working time: ≥10h; Battery 15%~100% Charging Time: 60 minutes.
2. Zero emissions, low noise
Especially suitable for urban municipal construction; One machine reduces carbon emissions by about 13 tons in one year; Noise around the ear ≤ 74 dB, outside noise ≤ 93.9 dB
3. High safety and super adaptability
The motor is not affected by the high altitude environment; Battery with heating and cooling system; It can perfectly adapt to various working conditions from -35° to 60°, and at the same time, it can adapt to various extreme working conditions such as high altitude, humidity, dust and so on. Leakage automatic protection function.
4. Top configuration

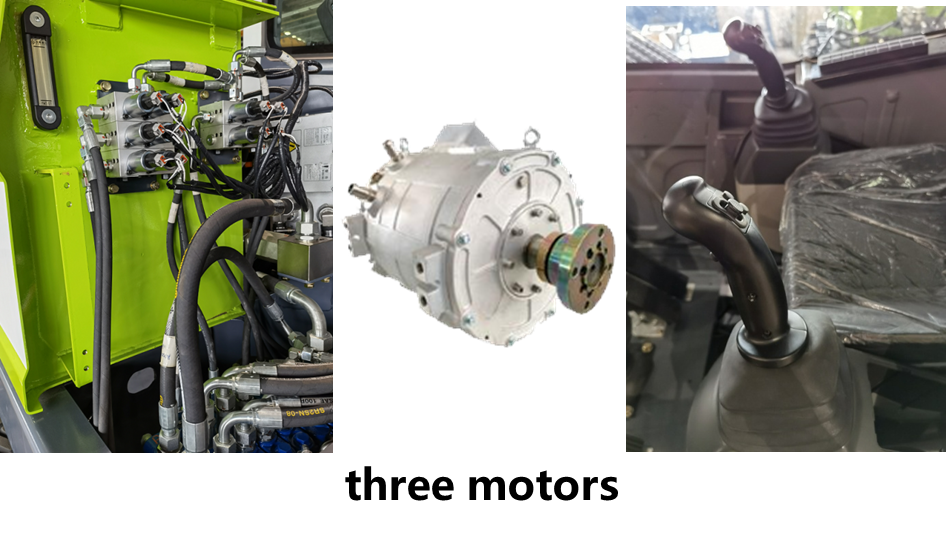

Driven by three motors, operation, steering, and walking are driven by separate motors, which is more energy-saving. At the same time, it has the function of energy recovery during walking and steering, which further improves the battery life of the whole machine;

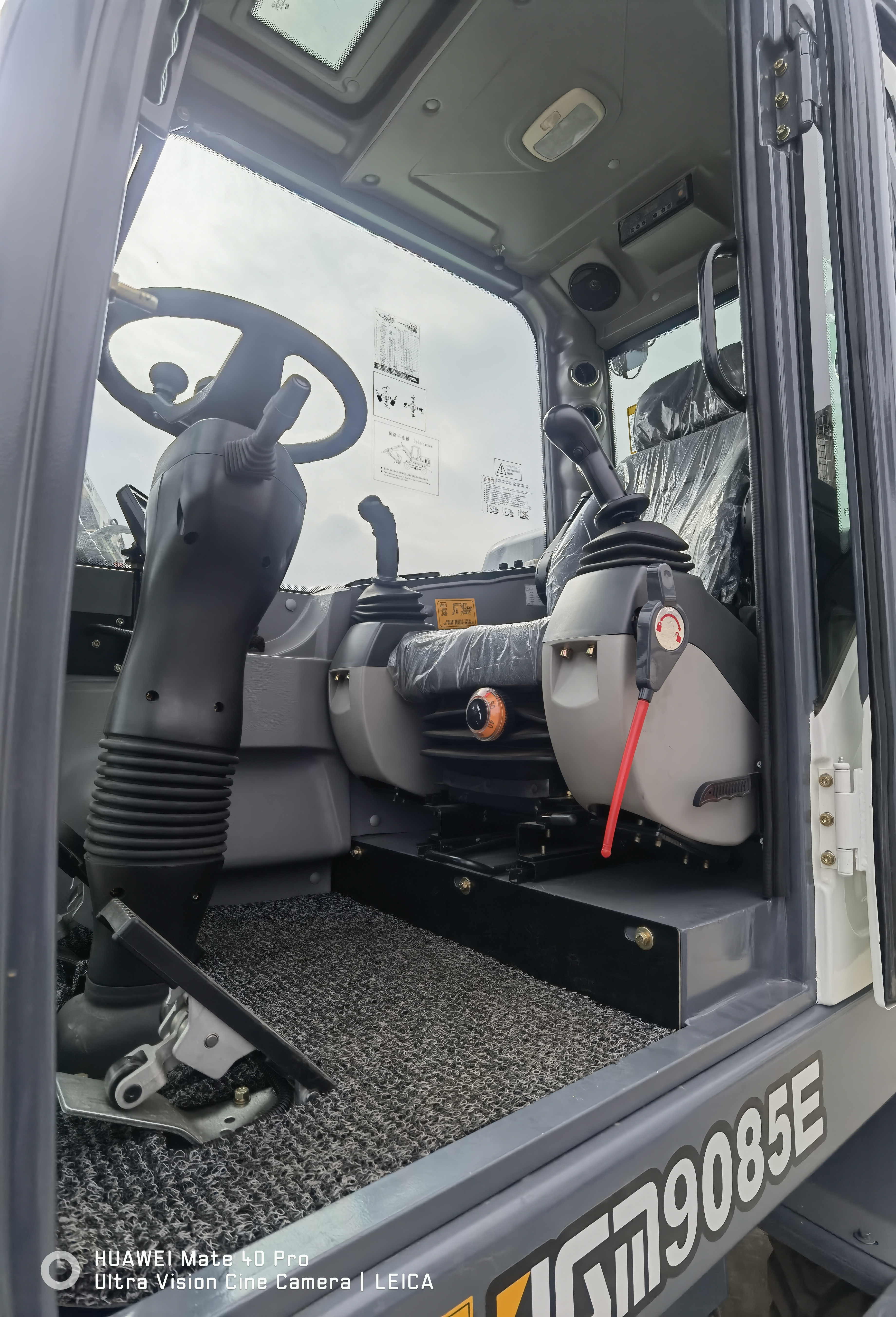

Using electric proportional pilot valve and electric signal pilot handle, the operation is lighter and more precise;
It can option radio signals to easily realize remote control and deal with extremely dangerous conditions.
5. Various attachments
Can option a variety of attachments, powerful functions, suitable for different working conditions.
Parameters:

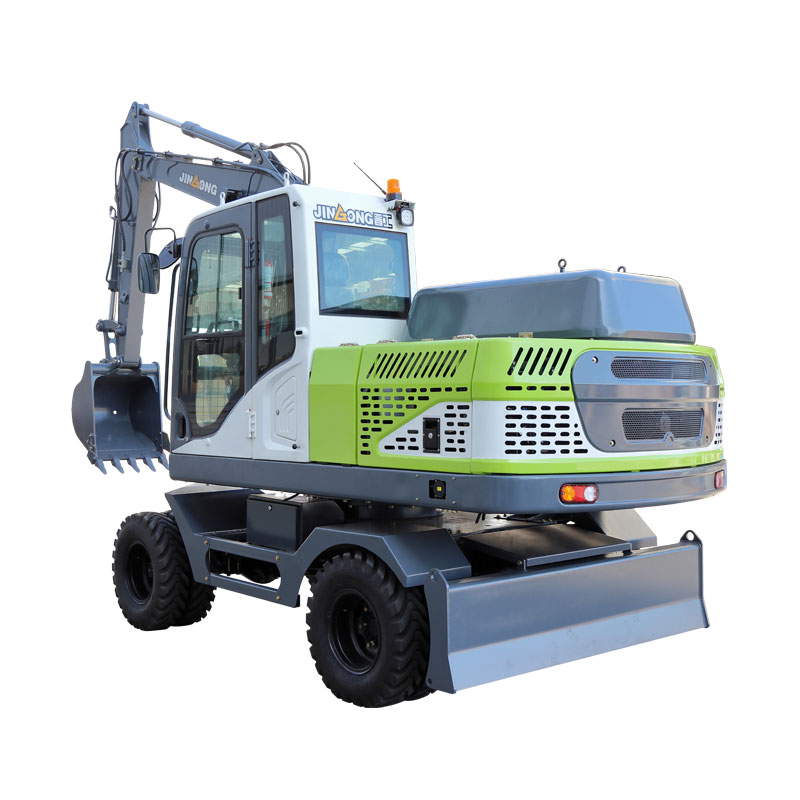

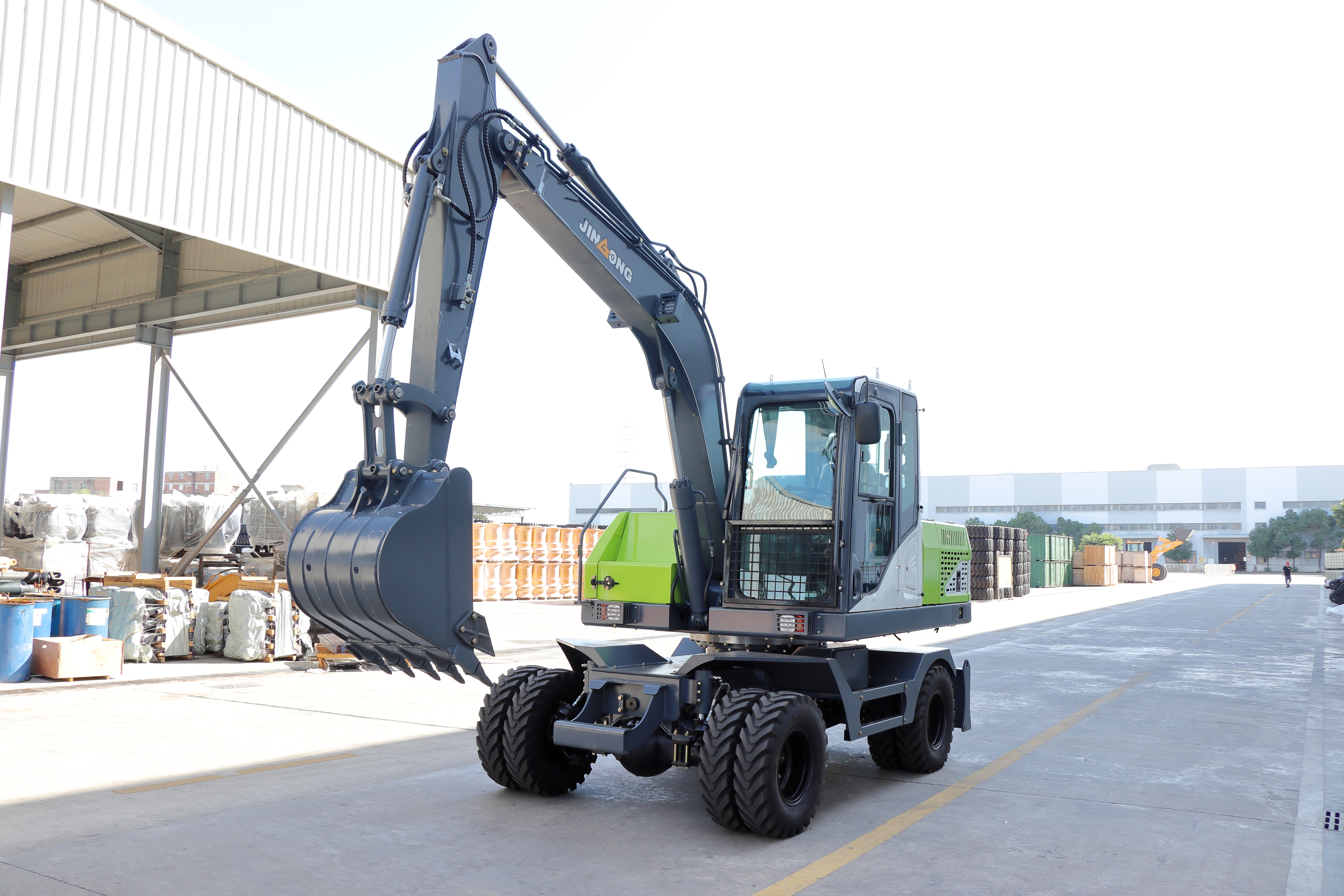

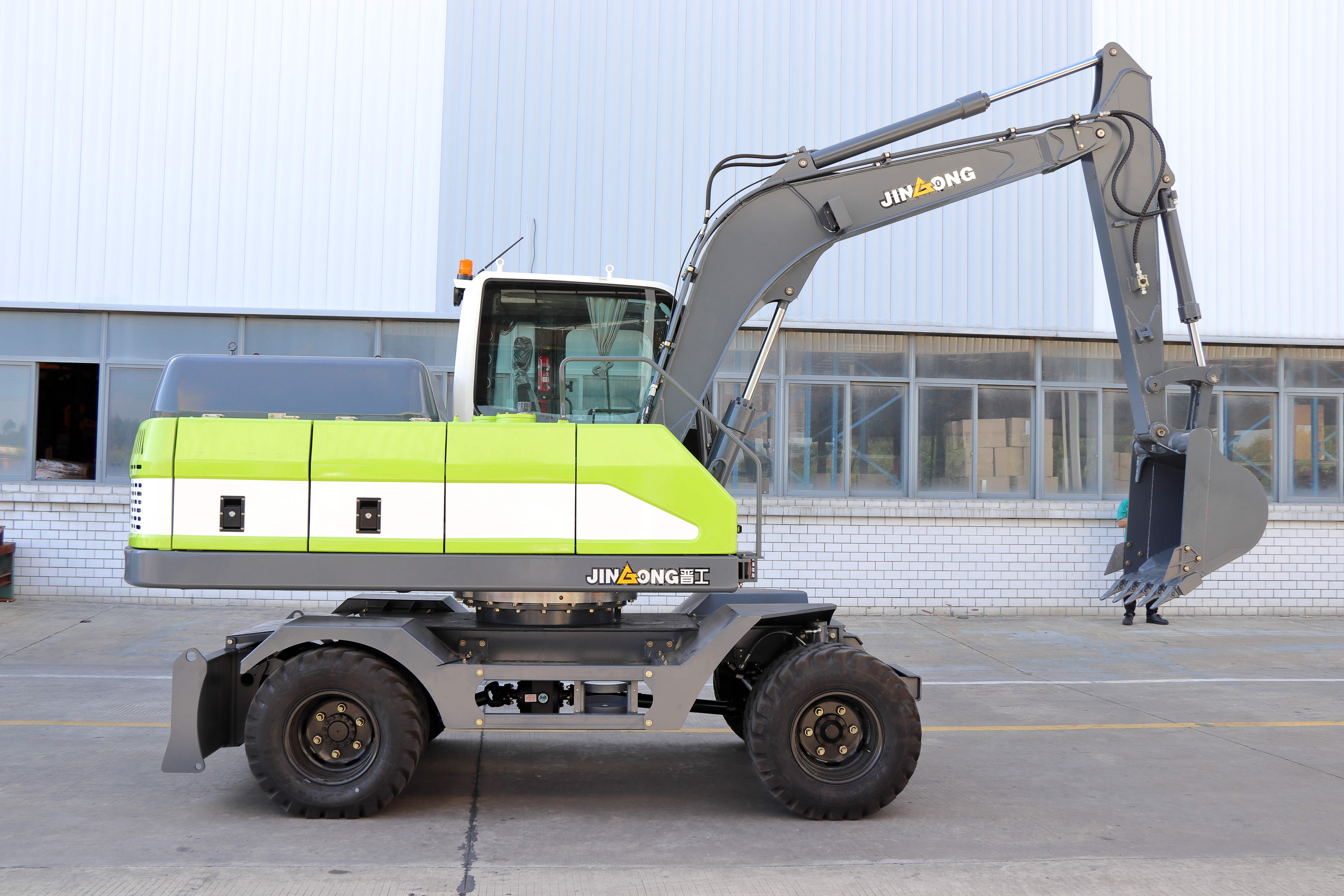

ITEM | JGM9085E |
Operating weitht（kg） | 8050 |
Overall dimension(LxWxH)（mm） | 6700×2140×2885 |
Bucket capacity（m³） | 0.3 |
Max. digging force（kN） | 45 |
Travelling speed（km/h） | 0~30 |
Grading capacity（°） | 30 |
Battery capacity（kWh） | 140 |
Continuous Working Hour（h） | ≥10 |
Battery15%~100% Charging time （h） | 1h |
Noises at driver location（dB） | ≤74 |
Noises outside （dB） | ≤93.9 |
Max. digging height（mm） | 6770 |
Max. digging depth（mm） | 3550 |
Max. digging radius （mm） | 6560 |
Max. dumping height（mm） | 4790 |
Max. digging distance （mm） | 6320 |
Max. doze depth（mm） | 105 |
Max. doze height （mm） | 345 |
