CRRC Permanent magnet synchronous motor，High torque, high power Low noise, small vibration, Quick start, more comfortable Waterproof and dustproof, Insulation maintenance. The whole machine adopts dual-motor system drive scheme, The oil pump motor and the walking motor can be separated to achieve independent control, which is more powerful and energy-saving.
Customized service support: Bucket size, tire type, control system, and other configurations can be customized according to user operating scenarios (such as mining, ports, agriculture), while providing a 2-year/5000 hour warranty and on-site maintenance service to reduce user concerns.
Environmental emission standards: The engine meets the National IV/Euro V emission standards and is equipped with a particulate filter (DPF) and selective catalytic reduction system (SCR), reducing exhaust pollutant emissions by 60% and meeting environmental policy requirements.

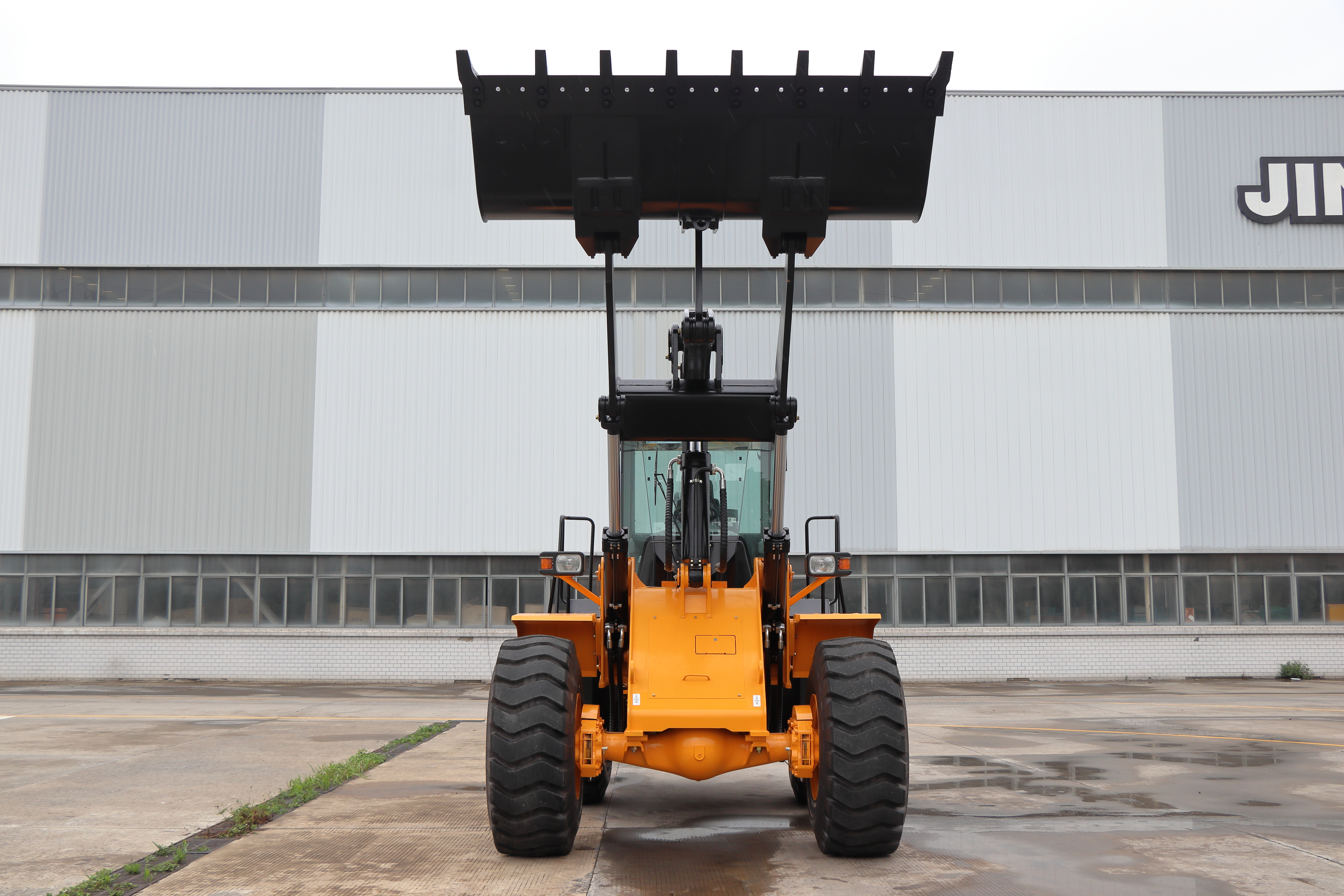

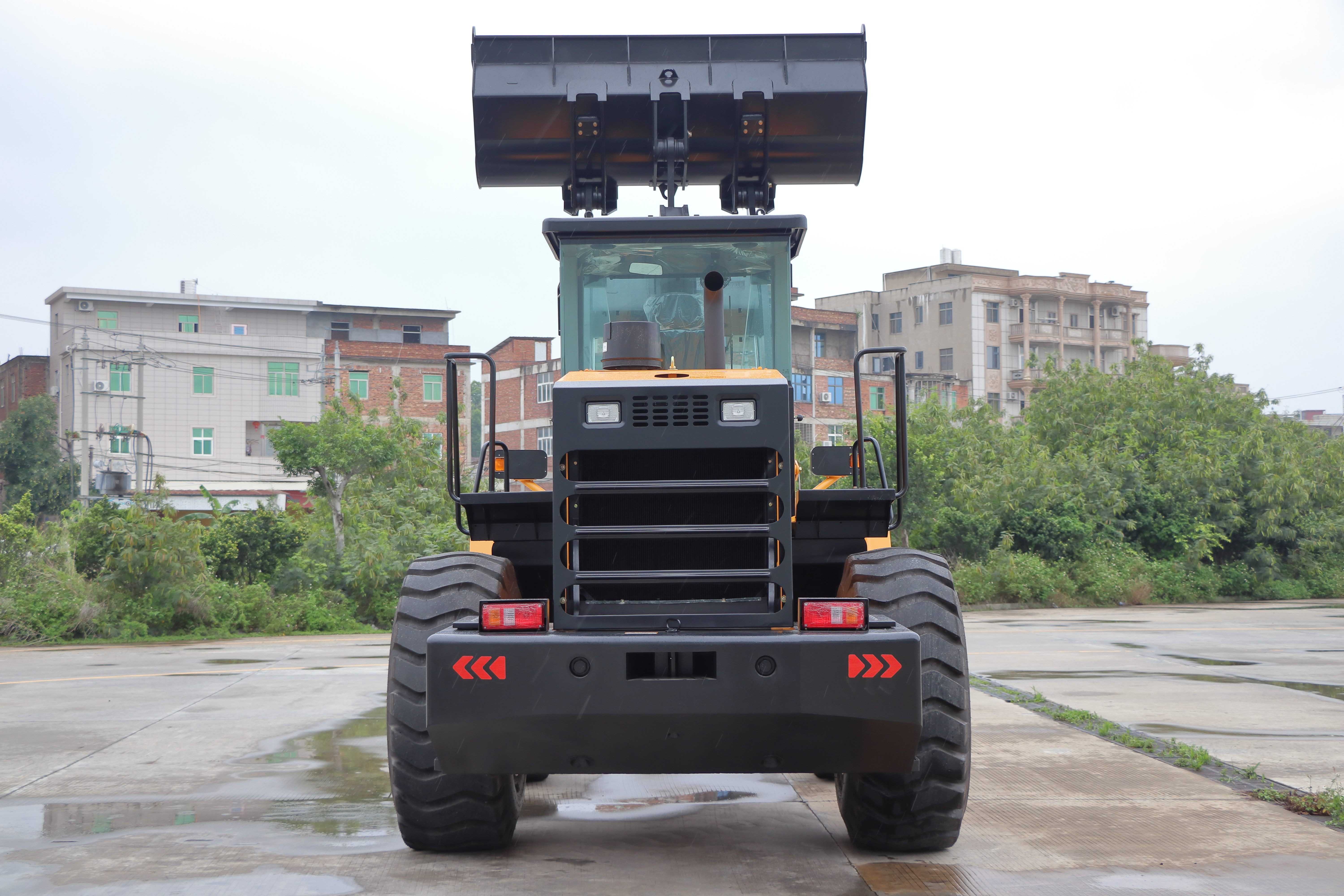

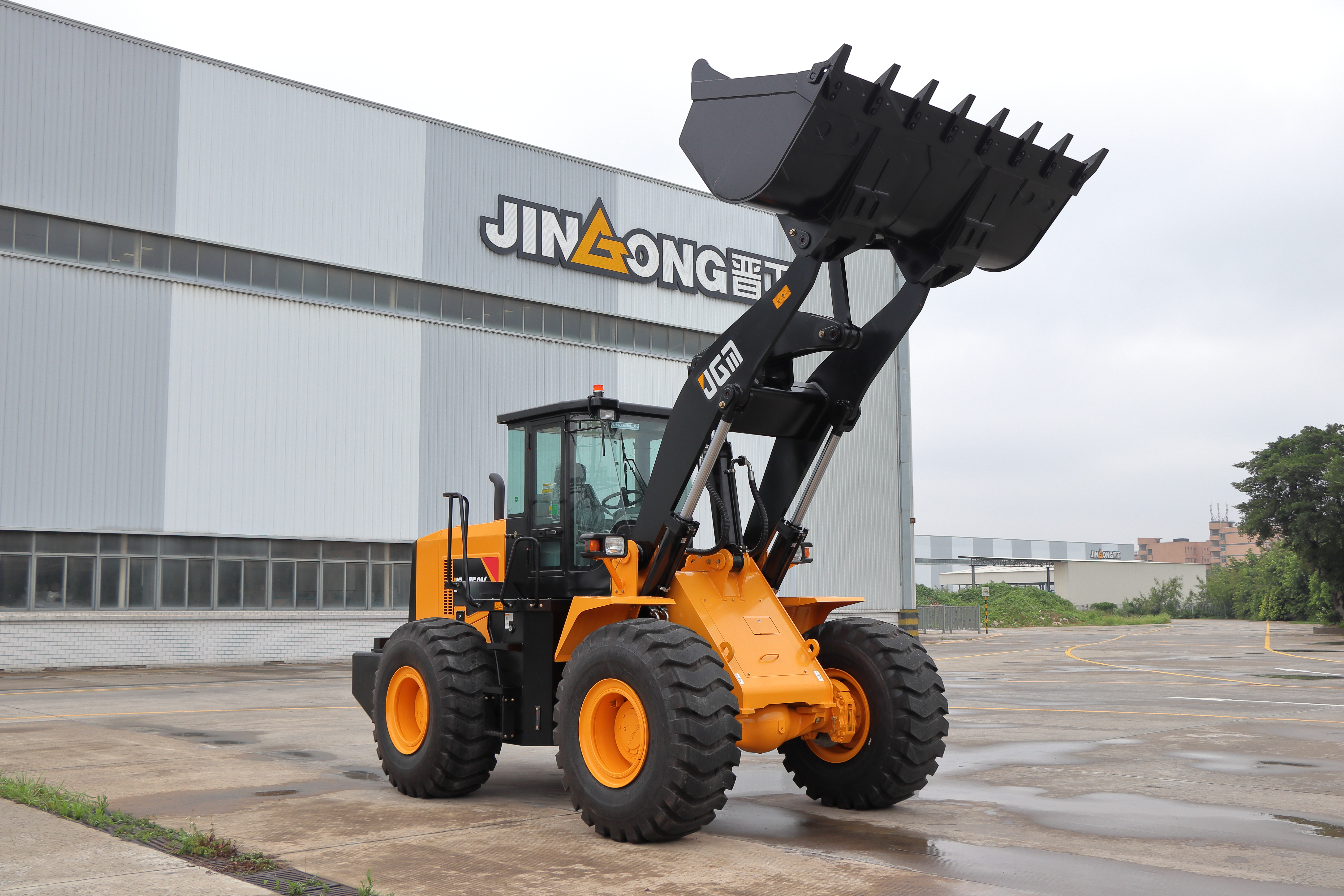

JinGong JGM756 multi-functional medium wheel loaders can be well adapted in various work conditions such as coal mines, earthwork, gravel and sedendary soils with its advantages in wheelbase. Mounted with light and flexible new frame structure, it features high efficiency and reliability, high fuel economy, and high price performance ratio.
Powerful, Fuel Efficient and Energy-Saving Engine
Weichai turbocharged engine are built for maximum power, reliability. This engine meets the emission standards EPA Tier II, EU Stage II. Weichai WD10 engine has maximum power of 162 kW
and peak torque of 980 N·m at 1,200 - 1,400 rpm, it provides sufficient power. The Weichai engine provides more energy saving and stronger power.

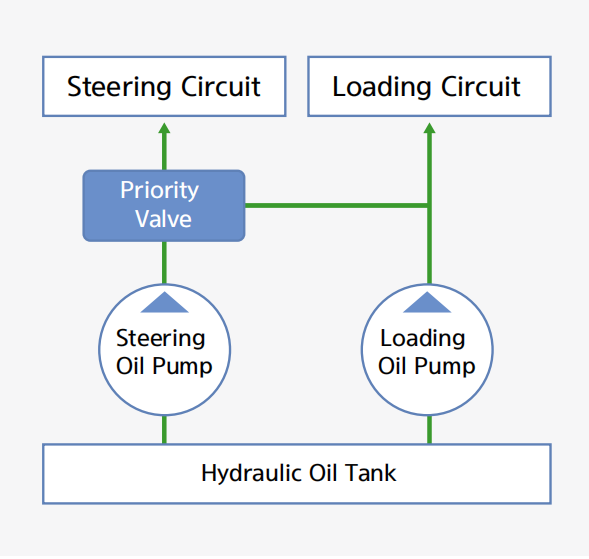

Load Sensitive Hydraulic System
Load sensing steering directs power through the steering system only when the steering system needs the force. When not steering, more engine power is available to generate breakout force,
lift force, and results in reduced fuel consumption.
Dual Hydraulic Pump Confluence Technology
Due to dual pump confluence technology, hydraulic system conduct efficient work, fully utilizing pump.
Large Capacity Fuel Tank for Long Working Time
Large capacity fuel tank (290 ℓ) offers long working time.
Large Displacement Booster Pump
Braking system has equipped large displacement booster pump ensure high reliability and safety.
Proven Reliability
The reliable components and solid frame structure not only improved the durability of the device, but also enhanced its work efficiency.
Reliable and Proven Transmission with The Best Combination of Engine
Durable mechanical Transmission & Torque convertor is best matching with Weichai WD10 engine. Transmission & Torque convertor are reliable and easily for operation to suit in all requirements of working situations.Due to the best matching, JGM756K provides more powerful workability. Manual shifting mode, convenient for customers to choose gears
according to actual conditions.
Durable and Sturdy Axle
Durable mechanical and sturdy front and rear axle provides running stability, good performance even in poor jobsite conditions, and maximization of the operation capability.
Firm and Durable Structural Parts
Extend product life and ensure superior running function using product structure of limited element analysis and optimization.
Enhanced Cooling System
Large capacity radiator and coolers significantly improve thermal shock, impulse and vibration resistance and increase durability.
Double Sealing Linkage
All hinged shaft holes adopt double sealing structure, which has good dustproof and sealing effect, fully guarantees internal lubrication and prolongs lubrication and aging for several thousand years.
Easy and Comfortable Operation
Operating a JGM756 wheel loader is unique to every operator. Operators can fully customize their work environment and operating preferences to fit their individual needs.

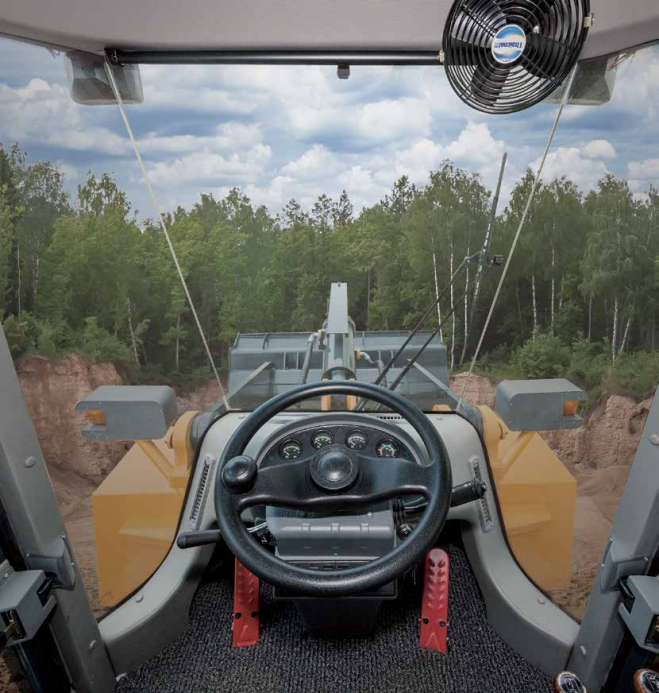

Spacious Cab with Excellent View
Spacious cab designed with ergonomics approach boasts low noise and excellent view, arc shaped front window, large rear window and side windows offer wide view in all directions.

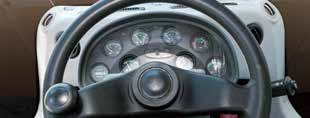

Centralized Monitoring Panel
Centralized monitoring panel designed with simplicity of ergonomics that shows working conditions and warning lights at a glance.
Easy Controlled Rocker Switches
All the switches are arranged in concentrated and combined ways, easy to operate.
Standard Large Capacity Air Conditioning
Large capacity, air circulation and defrost system make the space comfortable for operators.
Excellent Air Circulation System
Excellent air conditioning and circulation system provide operators with more comfortable working environment.
Suspension Seat
It can be adjusted to the position optimized for driver’s weight and size reducing operator’s fatigue.
Rear Wiper (Option)
In case of rain, a lot of dust in the work environment, improving rear visibility.
Large Side Mirror
Large side mirror ensures the operator’s driving safety.
Air Purification Filter
It effectively filters dusts out of the cab to keep the air clean and fresh.

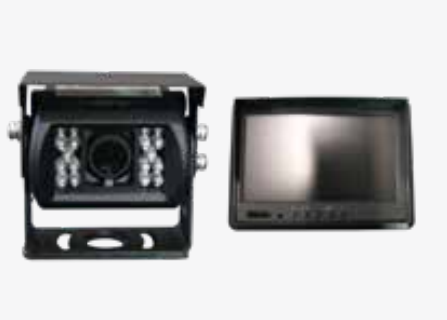

Rear View Camera(Option)
Optional rear view camera helps you keep an extra eye on the jobsite.
Headlight and Turn Signal
Lights are beautifully and durably designed.
Customized Operation with Joystick Control(Option)

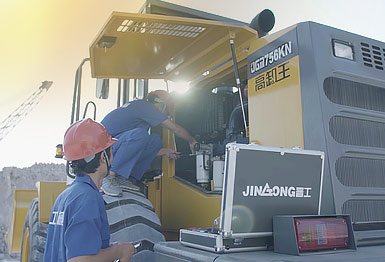

Serviceability
The Hyundai JGM756 is the ideal equipment for easy maintenance and service.
Non-Slip Platform
Non-slip platform and steps ensure operator’s safety.
Key-Locking Fuel Cap
The location of fuel cap increased accessibility and key locking function is applied for the prevention of vandalism.
Oil Sight Gauge
The hydraulic oil check sight gauge is installed on the side of the hydraulic tank for the convenience of maintenance check from ground level.
Quickly Changeable Brake Disc
The brake discs can be replaced quickly and easily without removing the tires, which saves maintenance time.
Easy Access to Engine Compartment
Engine hood with two side wing flap opened door provide access for maintenance to easily replace engine components and perform daily maintenance.
Main Parameters
Item | Parameters |
Operating weight (kg) | 16850 |
Rated load (kg) | 5000 |
Bucket capacity (m3) | 2.7 |
Dump height (mm) | 3150 |
Dump reach (mm) | 1315 |
Max traction (kN ) | ≥163 |
Max breakout force ( kN) | ≥168 |
Overall Dimension (LxWxH) (mm) | 7750×2990×3450 |
Boom lifting time (s) | ≤5.5 |
Total cycling time (s) | ≤10.5 |
Rated power (kW) | 162 |
Parameters of variant working device | ||||||
Item | Rock bucket | Common bucket | Coal bucket | High-dump | Unit | |
Standard bucket | Coal bucket | |||||
Bucket capacity | 2.4 | 3.5 | 2.3 | 2.7 | 3.5 | m3 |
Rated load | 5000 | 5000 | 4300 | 5000 | 5000 | kg |
Operating weight | 17030 | 17200 | 18300 | 17330 | 18000 | kg |
Dump height | 3180 | 2990 | 2950 | 3510 | 3310 | mm |
Dump reach | 1100 | 1215 | 1200 | 1170 | 1210 | mm |
Overall length | 7790 | 7870 | 7970 | 8255 | 8440 | mm |
Min. Turning radius(outer edge of bucket) | 6700 | 6820 | 6850 | 6870 | 7020 | mm |
The structure and parameters are subject to change without prior notice due to technical progress. If the sample product is different from the actual product in some way, the actual product shall prevail. | ||||||
